Wrapper class for managing particles through SEffectManager. More...

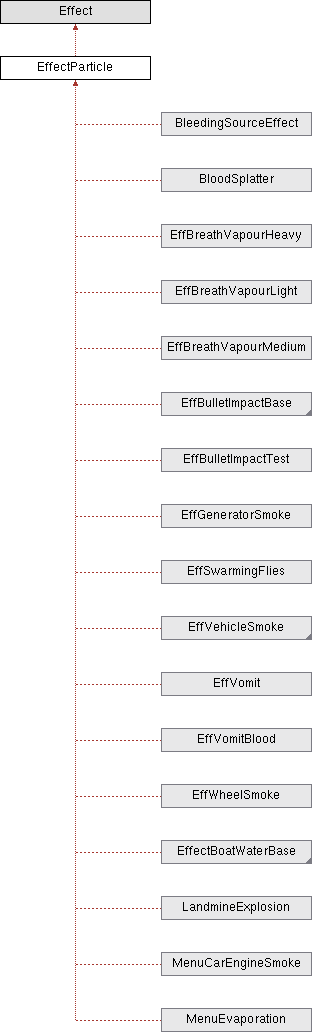

Inheritance diagram for EffectParticle:

Protected Member Functions
EffectType
Information about what type of effect the Effect is, without the need for casting
override EffectType	GetEffectType ()
	Get what type of effect the Effect is.

override bool	IsParticle ()
	Check whether the Effect is EffectParticle without casting.

Main particle
Set or get the main particle which this Effect will manage
void	SetParticle (Particle p)
	Sets the main particle which this Effect will manage.

Particle	GetParticle ()
	Gets the main particle which this Effect is managing.

Playback
Methods to Play/Stop Effect Generally, SEffectManager.Play methods are used instead of Start
override void	Start ()
	Plays all elements this effect consists of.

override void	Stop ()
	Stops all elements this effect consists of.

Attach
Helper methods for attaching to prent
void	AttachTo (Object obj, vector local_pos="0 0 0", vector local_ori="0 0 0", bool force_rotation_to_world=false)
	Read Particle.AddAsChild.

void	ReAttach ()
	Helper method to attach to parent using stored settings.

void	AddAsChild (Object obj, vector local_pos, vector local_ori, bool force_rotation_to_world)
	Helper method to attach to parent.

Events
Various events that can be overriden for custom behaviour
void	Event_OnPlayStart ()
	Event which just simply exists (DEPRECATED)

void	Event_OnPlayStarted ()
	Event which just simply exists (DEPRECATED)

Generic API
Setters and getters for generic data and properties
void	SetParticleID (int id)
	Sets the id of the particle to be used.

int	GetParticleID ()
	Gets the id of the particle to be used.

void	SetCurrentParticleID (int id)
	Sets the id of the particle to be used.

int	GetCurrentParticleID ()
	Gets the current id of the managed Particle.

override void	SetCurrentParent (Object parent_obj, bool updateCached=true)
	Set current parent of the managed Particle.

override Object	GetCurrentParent ()
	Get the current parent of the managed Particle.

override void	SetCurrentPosition (vector pos, bool updateCached=true)
	Set the current world position of the managed Particle.

override vector	GetCurrentPosition ()
	Get the current world position of the managed Particle.

override void	SetCurrentLocalPosition (vector pos, bool updateCached=true)
	Set the current local position of the managed Particle.

override vector	GetCurrentLocalPosition ()
	Get the current local position of the managed Particle.

void	SetOrientation (vector ori)
	Set orientation of the EffectParticle.

vector	GetOrientation ()
	Get the orientation of the EffectParticle.

void	SetCurrentOrientation (vector ori, bool updateCached=true)
	Set the current orientation of the managed Particle.

vector	GetCurrentOrientation ()
	Get the current orientation of the managed Particle.

void	ForceParticleRotationRelativeToWorld (bool state)
	Set orientation setting to be used by the effect when the Effect starts.

bool	IsParticleRotationRelativeToWorld ()
	Get the orientation setting to be used by the effect when the Effect starts.

bool	IsParticleCurrentRotationRelativeToWorld ()
	Get the current orientation setting to be used by the managed Particle.

Protected Attributes
Particle	m_ParticleObj
	The main Particle effect that this Effect wrapper manages.

Generic data
Generic data for the particle
int	m_ParticleID
	The ID in the ParticleList to create Particle from.

vector	m_Orientation
	Orientation set by SetOrientation.

bool	m_ForceRotationRelativeToWorld
	Orientation setting to be used by the effect when the Effect starts.

DEPRECATED
Methods which exist for backwards compatibility and are no longer in use or have never been in use
vector	m_ParticleOrientation

Object	m_Object

void	EffectParticle ()
	ctor

void	~EffectParticle ()
	dtor

override void	InitEffect ()
	init

override string	GetDebugName ()
	Override when getting debug information.

override void	ValidateStart ()
	Validation whether an effect truly started playing or if the Effect should stop as none is present.

void	CheckLifeSpan ()
	Was never called and probably should never be called.

void	SetDecalOwner (Object o)

Detailed Description

Wrapper class for managing particles through SEffectManager.

Definition at line 4 of file effectparticle.c.

Constructor & Destructor Documentation

◆ EffectParticle()

void EffectParticle::EffectParticle ( )

protected

ctor

Definition at line 34 of file effectparticle.c.

◆ ~EffectParticle()

void EffectParticle::~EffectParticle ( )

protected

dtor

Definition at line 42 of file effectparticle.c.

Member Function Documentation

◆ AddAsChild()

void EffectParticle::AddAsChild	(	Object	obj,
		vector	local_pos,
		vector	local_ori,
		bool	force_rotation_to_world )

protected

Helper method to attach to parent.

Definition at line 251 of file effectparticle.c.

◆ AttachTo()

void EffectParticle::AttachTo	(	Object	obj,
		vector	local_pos = "0 0 0",
		vector	local_ori = "0 0 0",
		bool	force_rotation_to_world = false )

protected

Read Particle.AddAsChild.

Definition at line 227 of file effectparticle.c.

◆ CheckLifeSpan()

void EffectParticle::CheckLifeSpan ( )

protected

Was never called and probably should never be called.

Warning: Emptied the functionality as it is relatively unsafe...

Definition at line 550 of file effectparticle.c.

◆ Event_OnPlayStart()

void EffectParticle::Event_OnPlayStart ( )

protected

Event which just simply exists (DEPRECATED)

Warning: Never called or used

Note: Use Event_OnStarted instead

Definition at line 274 of file effectparticle.c.

◆ Event_OnPlayStarted()

void EffectParticle::Event_OnPlayStarted ( )

protected

Event which just simply exists (DEPRECATED)

Warning: Never called or used

Note: Use Event_OnStarted instead

Definition at line 284 of file effectparticle.c.

◆ ForceParticleRotationRelativeToWorld()

void EffectParticle::ForceParticleRotationRelativeToWorld ( bool state )

protected

Set orientation setting to be used by the effect when the Effect starts.

Warning: Only caches it into a variable to be used by Start, does not live update when called afterwards

Note: There is no way to update this immediately

Parameters

state bool Whether to keep WS orientation when attaching it to parent

Definition at line 503 of file effectparticle.c.

◆ GetCurrentLocalPosition()

override vector EffectParticle::GetCurrentLocalPosition ( )

protected

Get the current local position of the managed Particle.

Returns: vector The current local position of the managed Particle

Definition at line 431 of file effectparticle.c.

◆ GetCurrentOrientation()

vector EffectParticle::GetCurrentOrientation ( )

protected

Get the current orientation of the managed Particle.

Returns: vector The current orientation of the managed Particle

Definition at line 487 of file effectparticle.c.

◆ GetCurrentParent()

override Object EffectParticle::GetCurrentParent ( )

protected

Get the current parent of the managed Particle.

Returns: Object The currrent parent of the Particle

Definition at line 367 of file effectparticle.c.

◆ GetCurrentParticleID()

int EffectParticle::GetCurrentParticleID ( )

protected

Gets the current id of the managed Particle.

Returns: int Particle ID registered in ParticleList

Definition at line 338 of file effectparticle.c.

◆ GetCurrentPosition()

override vector EffectParticle::GetCurrentPosition ( )

protected

Get the current world position of the managed Particle.

Returns: vector The current world position of the managed Particle

Definition at line 396 of file effectparticle.c.

◆ GetDebugName()

override string EffectParticle::GetDebugName ( )

protected

Override when getting debug information.

Definition at line 67 of file effectparticle.c.

◆ GetEffectType()

override EffectType EffectParticle::GetEffectType ( )

protected

Get what type of effect the Effect is.

Returns: EffectType What type of effect the Effect is

Definition at line 107 of file effectparticle.c.

◆ GetOrientation()

vector EffectParticle::GetOrientation ( )

protected

Get the orientation of the EffectParticle.

Warning: Only gets the cached variable, for immediate effect use GetCurrent variant

Returns: vector The orientation of EffectParticle

Definition at line 463 of file effectparticle.c.

◆ GetParticle()

Particle EffectParticle::GetParticle ( )

protected

Gets the main particle which this Effect is managing.

Returns: Particle Main particle which this Effect is managing

Definition at line 162 of file effectparticle.c.

◆ GetParticleID()

int EffectParticle::GetParticleID ( )

protected

Gets the id of the particle to be used.

Warning: Only gets the cached variable, for immediate effect use GetCurrent variant

Returns: int Particle ID registered in ParticleList

Definition at line 313 of file effectparticle.c.

◆ InitEffect()

override void EffectParticle::InitEffect ( )

protected

init

Definition at line 50 of file effectparticle.c.

◆ IsParticle()

override bool EffectParticle::IsParticle ( )

protected

Check whether the Effect is EffectParticle without casting.

Returns: bool Whether the Effect is EffectParticle

Definition at line 116 of file effectparticle.c.

◆ IsParticleCurrentRotationRelativeToWorld()

bool EffectParticle::IsParticleCurrentRotationRelativeToWorld ( )

protected

Get the current orientation setting to be used by the managed Particle.

Returns: bool Whether the managed Particle is only updating position from parent

Definition at line 527 of file effectparticle.c.

◆ IsParticleRotationRelativeToWorld()

bool EffectParticle::IsParticleRotationRelativeToWorld ( )

protected

Get the orientation setting to be used by the effect when the Effect starts.

Warning: Only gets the cached variable, for immediate effect use IsParticleCurrentRotationRelativeToWorld

Returns: bool Whether to keep WS orientation when attaching it to parent

Definition at line 513 of file effectparticle.c.

◆ ReAttach()

void EffectParticle::ReAttach ( )

protected

Helper method to attach to parent using stored settings.

Definition at line 242 of file effectparticle.c.

◆ SetCurrentLocalPosition()

override void EffectParticle::SetCurrentLocalPosition	(	vector	pos,
		bool	updateCached = true )

protected

Set the current local position of the managed Particle.

Parameters

pos	`vector` The current local position for the managed Particle
updateCached	`bool` Whether to update the cached variable

Definition at line 411 of file effectparticle.c.

◆ SetCurrentOrientation()

void EffectParticle::SetCurrentOrientation	(	vector	ori,
		bool	updateCached = true )

protected

Set the current orientation of the managed Particle.

Parameters

ori	`vector` Orientation in degrees (yaw, pitch, roll)

Definition at line 472 of file effectparticle.c.

◆ SetCurrentParent()

override void EffectParticle::SetCurrentParent	(	Object	parent_obj,
		bool	updateCached = true )

protected

Set current parent of the managed Particle.

Parameters

parent_obj	`Object` The parent for the Particle
updateCached	`bool` Whether to update the cached variable

Definition at line 356 of file effectparticle.c.

◆ SetCurrentParticleID()

void EffectParticle::SetCurrentParticleID ( int id )

protected

Sets the id of the particle to be used.

Note: Particle will not update immediately, but ParticleSource will

Parameters

id	`int` Particle ID registered in ParticleList

Definition at line 323 of file effectparticle.c.

◆ SetCurrentPosition()

override void EffectParticle::SetCurrentPosition	(	vector	pos,
		bool	updateCached = true )

protected

Set the current world position of the managed Particle.

Parameters

pos	`vector` The current world position for the Particle
updateCached	`bool` Whether to update the cached variable

Definition at line 382 of file effectparticle.c.

◆ SetDecalOwner()

void EffectParticle::SetDecalOwner ( Object o )

protected

Definition at line 562 of file effectparticle.c.

◆ SetOrientation()

void EffectParticle::SetOrientation ( vector ori )

protected

Set orientation of the EffectParticle.

Warning: Only sets the cached variable, for immediate effect use SetCurrent variant

Parameters

ori	`vector` Orientation in degrees (yaw, pitch, roll)

Definition at line 453 of file effectparticle.c.

◆ SetParticle()

void EffectParticle::SetParticle ( Particle p )

protected

Sets the main particle which this Effect will manage.

Parameters

p	`Particle` Main particle which this Effect will manage

Definition at line 134 of file effectparticle.c.

◆ SetParticleID()

void EffectParticle::SetParticleID ( int id )

protected

Sets the id of the particle to be used.

Note: Only changes the cached variable, for immediate, use SetCurrentParticleID

Parameters

id	`int` Particle ID registered in ParticleList

Definition at line 303 of file effectparticle.c.

◆ Start()

override void EffectParticle::Start ( )

protected

Plays all elements this effect consists of.

Note: Is called by SEffectManager.Play methods

Definition at line 181 of file effectparticle.c.

◆ Stop()

override void EffectParticle::Stop ( )

protected

Stops all elements this effect consists of.

Note: Alternatively use SEffectManager.Stop( effect_id )

Definition at line 204 of file effectparticle.c.

◆ ValidateStart()

override void EffectParticle::ValidateStart ( )

protected

Validation whether an effect truly started playing or if the Effect should stop as none is present.

Note: Override this when inheriting to create own validation check; Is called from Event_OnStarted invoker after Event_OnStarted has been performed

Definition at line 87 of file effectparticle.c.

Member Data Documentation

◆ m_ForceRotationRelativeToWorld

bool EffectParticle::m_ForceRotationRelativeToWorld

protected

Orientation setting to be used by the effect when the Effect starts.

Definition at line 18 of file effectparticle.c.

◆ m_Object

Object EffectParticle::m_Object

protected

Definition at line 26 of file effectparticle.c.

◆ m_Orientation

vector EffectParticle::m_Orientation

protected

Orientation set by SetOrientation.

Definition at line 16 of file effectparticle.c.

◆ m_ParticleID

int EffectParticle::m_ParticleID

protected

The ID in the ParticleList to create Particle from.

Definition at line 14 of file effectparticle.c.

◆ m_ParticleObj

Particle EffectParticle::m_ParticleObj

protected

The main Particle effect that this Effect wrapper manages.

Definition at line 7 of file effectparticle.c.

◆ m_ParticleOrientation

vector EffectParticle::m_ParticleOrientation

protected

Definition at line 25 of file effectparticle.c.

The documentation for this class was generated from the following file:

Daten/3_game/effects/effectparticle.c

Protected Member Functions

Protected Attributes

DEPRECATED

Detailed Description

Constructor & Destructor Documentation

◆ EffectParticle()

◆ ~EffectParticle()

Member Function Documentation

◆ AddAsChild()

◆ AttachTo()

◆ CheckLifeSpan()

◆ Event_OnPlayStart()

◆ Event_OnPlayStarted()

◆ ForceParticleRotationRelativeToWorld()

◆ GetCurrentLocalPosition()

◆ GetCurrentOrientation()

◆ GetCurrentParent()

◆ GetCurrentParticleID()

◆ GetCurrentPosition()

◆ GetDebugName()

◆ GetEffectType()

◆ GetOrientation()

◆ GetParticle()

◆ GetParticleID()

◆ InitEffect()

◆ IsParticle()

◆ IsParticleCurrentRotationRelativeToWorld()

◆ IsParticleRotationRelativeToWorld()

◆ ReAttach()

◆ SetCurrentLocalPosition()

◆ SetCurrentOrientation()

◆ SetCurrentParent()

◆ SetCurrentParticleID()

◆ SetCurrentPosition()

◆ SetDecalOwner()

◆ SetOrientation()

◆ SetParticle()

◆ SetParticleID()

◆ Start()

◆ Stop()

◆ ValidateStart()

Member Data Documentation

◆ m_ForceRotationRelativeToWorld

◆ m_Object

◆ m_Orientation

◆ m_ParticleID

◆ m_ParticleObj

◆ m_ParticleOrientation
